CONMACO AIR WINCHES

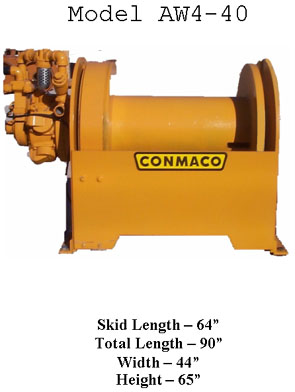

Model AW4-40

Drum Dimensions

Flange Diameter

40"

Barrel Diameter

20"

Drum Length

40"

Maximum Size Wire Rope

1-1/8"

Spooling Capacity

7/8" Wire Rope

4000'

1 " Wire Rope

3400'

1-1/8" Wire Rope

3100'

Brakes

Automatic Band Brake

Air Compressor Required:

850 CFM

Air Inlet

Two-Inch Female

Weight(Without Wire Rope)

6000 lbs.

PERFORMANCE DATA

Theoretical line pull in pounds and feet per minute using 1-1/8" wire rope with 850 CFM and 90 PSI at the winch

1st Layer

Half Drum Rating

Top Drum Rating

50,000 lbs. Stall Rating

40,000 lbs. Stall Rating

30,000 lbs Stall Rating

38,000 lbs. @ 39 FPM

28,0000 lbs. @ 40 FPM

20,000 lbs @ 50 FPM
