Amcon Winches & Hoists
The AMCON line of Winches and Hoists are heavy duty
air-controlled winches engineered for lifting and anchoring
applications under a variety of operating conditions. For
years, Conmaco provided offshore customers with mooring
system expertise and hoists we could match for their job,
however, as needs changed it became harder to find a "mass
production" hoist that allowed for the much needed customizing
that the market demanded. The AMCON Hoist is a heavy-duty,
air-controlled hoist which is engineered for heavy lift,
anchoring and derrick applications. The standard models
are available in double or triple drum waterfall configurations. Machines
can also be ordered in single drum or four drum arrangements.
An engine driven air compressor, air tank, stand up local
control console and diesel fuel tank are furnished as standard
equipment. AMCON hoists are just one example of how Conmaco and
AmCLyde combine over 180 years of experience in the engineering
and manufacturing of a complete line of quality construction
equipment.
AMCON 150 | AMCON
270 | AMCON 385 | AMCON
625 | AMCON 750

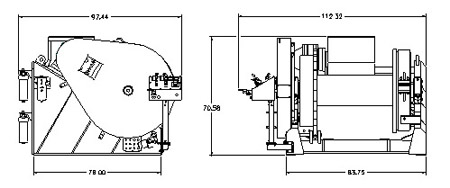

AMCON
385 HDS

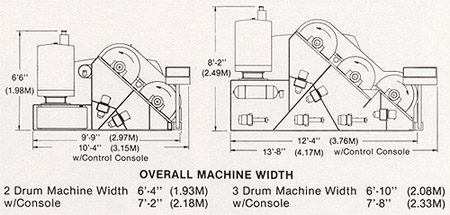

Amcon
150
 |
Drum
Dimensions |
Flange
Diameter |
30" (762mm) |
Drum
Diameter |
14" (356mm) |
Drum
Length |
26" (660mm) |
Spooling
Capacity
|
1/2" Wire
Rope |
5,638' (1,718m) |
5/8" Wire
Rope |
3,578' (1,091m) |
3/4" Wire
Rope |
2,367' (721m) |
7/8" Wire
Rope |
1,665' (507m) |
1" Wire
Rope |
1,316' (401m) |
|
|
BRAKES
Each drum is equipped with a single
external-contracting band-type brake.
The break is air-actuated, spring released
and is complete with a spring-set override/parking
brake feature.
Static Holding Power First Layer
Service.................28,000 lbs. (12.7MT)
Service+Parking...50,000 lbs. (22.6MT)
CLUTCH
Each drum is equipped with a single
internal-expanding band-type clutch.
The clutch is air-actuated.
PAINT
Winch frame,
guards and all
sheet metal work
are sandblasted
and coated with
inorganic zinc,
with finish coats
of high-gloss
polyurethane
marine paint.
OPTIONS
In addition
to a varitey
of engines, transmissions,
control arrangements,
and electric
or hydraulic
drives, the Model
150 can be ordered
with the following
accessories:
attached or remote
boom swingers,
levelwinds, or
fleeting sheaves.
Deck guide sheaves
and fairleaders
can also be furnished
to fit your needs.
WEIGHTS (with
standard diesel
power)
Double-drum......9,055lbs.(8.1MT)
Three-drum......12,466lbs.(12.3MT)
CONTROL CONSOLE
Side mounted stand-up type..Standard
Swing-around, seated.....Optional
Foward facing,
seated with cab.............Optional
DRUM DOG
Each drum is equipped with an air-actuated
drum dog.
PERFORMANCE
DATA
Theoretical
single-drum pull
in pounds an
line speed in
feet per minute
with a Detroit
Diese Model 4-53
electric-starting
diesel engine,
driving through
an Allison single-stage
torque converter,
using 1" wire. |
|
|
8th
Layer (28.86"P.D.)
Line Pull @ Line Speed |
5th
Layer (21.78"P.D.)
Line Pull @ Line Speed |
1st
Layer(26.68"P.D.)
Line Pull @ Line Speed |
High
70% |
5,764
lbs. @ 451 fpm |
7,109
lbs. @ 364 fpm |
10,322
lbs. @ 250 fpm |
Max.Eff. |
8,145
lbs. @ 313 fpm |
10,045
lbs. @ 253 fpm |
14,586
lbs. @ 174 fpm |
Low
70% |
11,755
lbs. @ 185 fpm |
14,497
lbs. @ 150 fpm |
21,049
lbs. @ 103 fpm |
Stall |
19,497
lbs. |
24,045
lbs. |
34,914
lbs. |
|
|
|
|
|
|

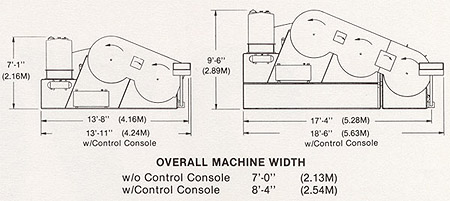

Amcon
270
 |
Drum
Dimensions |
Flange
Diameter |
50" (762mm) |
Drum
Diameter |
16" (356mm) |
Drum
Length |
26" (660mm) |
Spooling
Capacity
|
3/4" Wire
Rope |
6,860' (2,091m) |
7/8" Wire
Rope |
4,987' (1,521m) |
1" Wire
Rope |
3,765' (1,148m) |
1 1/8" Wire
Rope |
3,014' (919m) |
1 1/4" Wire
Rope |
2,374' (723m) |
|
|
BRAKES
Each drum is equipped with a single
external-contracting band-type brake.
The break is air-actuated, spring released
and is complete with a spring-set override/parking
brake feature.
Static Holding Power First Layer
Service.................45,000 lbs. (20.4MT)
Service+Parking...80,000 lbs. (36.3MT)
CLUTCH
Each drum is equipped with a single
internal-expanding band-type clutch.
The clutch is air-actuated.
MAXIMUM
SIZE WIRE ROPE
For Anchoring
Service...1
1/4"Wire Rope
PAINT
Winch
frame,
guards
and
all
sheet
metal
work
are
sandblasted
and
coated
with
inorganic
zinc,
with
finish
coats
of
high-gloss
polyurethane
marine
paint
OPTIONS
In
addition
to
a
varitey
of
engines,
transmissions,
control
arrangements,
and
electric
or
hydraulic
drives,
the
Model
270
can
be
ordered
with
the
following
accessories:
attached
or
remote
boom
swingers,
levelwinds,
or
fleeting
sheaves.
Deck guide sheaves and fairleaders can
also be furnished to fit your needs.
WEIGHTS (with
standard diesel
power)
Double-drum....18,000lbs.( 8.1MT)
Three-drum......27,186lbs.(12.3MT)
CONTROL CONSOLE
Side mounted stand-up type..Standard
Swing-around, seated...........Optional
Foward facing,
seated with cab....................Optional
DRUM DOG
Each drum is equipped with an air-actuated
drum dog.
PERFORMANCE
DATA
Theoretical
single-drum
pull in pounds
and line speed
in feet per
minute with
a Detroit Diesel
Model 4-71
electric-starting
diesel engine,
driving through
a Twin Disc
three-stage
torque converter,
using 1 1/8" wire rope.
|
|
|
|
14th
Layer (41.97"P.D.)
Line Pull @ Line
Speed |
11th
Layer (36.24"P.D.)
Line Pull @ Line
Speed |
6th
Layer(26.68"P.D.)
Line Pull @ Line
Speed |
1st
Layer(17.13"P.D.)
Line Pull @ Line
Speed |
High
70% |
4,517
lbs. @ 585 fpm |
5,290
lbs. @ 505 fpm |
7,190
lbs. @ 372 fpm |
11,200
lbs. @ 238 fpm |
Max.Eff. |
8,019
lbs. @ 372 fpm |
9,390
lbs. @ 321 fpm |
12,750
lbs. @ 236 fpm |
19,870
lbs. @ 151 fpm |
Low
70% |
15,594
lbs. @ 147 fpm |
18,260
lbs. @ 127 fpm |
24,800
lbs. @ 94 fpm |
38,660
lbs. @ 60 fpm |
Stall |
26,108
lbs. |
30,570
lbs. |
41,520
lbs. |
64,710
lbs. |
|
|
|
|
|
|
|

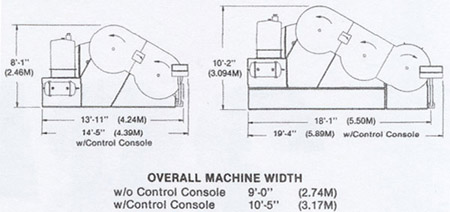

Amcon 385
 |
Drum
Dimensions |
Flange
Diameter |
49.5" (1,257mm |
Drum
Diameter |
18" (457mm) |
Drum
Length |
45" (1,143mm) |
Spooling
Capacity
|
7/8" Wire
Rope |
8,696'
(2,650m) |
1" Wire
Rope |
6,451'
(1,966m) |
1 1/8"Wire Rope |
5,185'
(1,580m) |
1 1/4"Wire Rope |
4,003'
(1,200m) |
1 3/8"Wire Rope |
3,464'
(1,056m) |
1 1/2"Wire Rope |
2,954'
( 900m) |
|
|
BRAKES
Each drum is equipped with a single
external-contracting band-type brake.
The break is air-actuated, spring release
and is complete with a spring-set override/parking
brake feature.
Static Holding Power First Layer
Service.................150,000
lbs. ( 68 MT)
Service+Parking....305,000
lbs. (138 MT)
CLUTCH
Each drum is
equipped with a single
internal-expanding
band-type clutch.
The clutch is air-actuated.
MAXIMUM SIZE WIRE
ROPE
For Anchoring
Service...1 1/2"Wire
Rope
PAINT
Winch frame,
guards and all sheet
metal work are sandblasted
and coated with inorganic
zinc, with finish
coats of high-gloss
polyurethane marine
paint.
OPTIONS
In addition
to a varitey of engines,
transmissions, control
arrangements, and
electric or hydraulic
drives, the Model
385 can be ordered
with the following
accessories: attached
or remote boom swingers,
levelwinds, or fleeting
sheaves.
Deck guide sheaves and fairleaders can
also be furnished to fit your needs.
WEIGHTS (with
standard diesel power)
Double-drum....28,375lbs.(12.9MT)
Three-drum......44,250lbs.(20.0MT)
CONTROL CONSOLE
Side mounted stand-up type..Standard
Swing-around, seated...........Optional
Foward facing,
seated with cab....................Optional
DRUM DOG
Each drum is equipped with an air-actuated
drum dog.
PERFORMANCE DATA
Theoretical single-drum
line pull in pounds
and line speed in
feet per minute with
a Detroit Model 6-71
electric-starting
diesel engine, driving
through a Twin Disc
three-stage torque
converter,
using 1 1/2" wire rope. |
|
|
10th
Layer (42.55"P.D.)
Line Pull @ Line Speed |
5th
Layer (29.74"P.D.)
Line Pull @ Line Speed |
1st
Layer(19.50"P.D.)
Line Pull @ Line Speed |
High
70% |
10,068
lbs. @ 328 fpm |
14,400
lbs. @ 226 fpm |
21,970
lbs. @ 148 fpm |
Max.Eff. |
23,660
lbs. @ 211 fpm |
33,850
lbs. @ 147 fpm |
51,630
lbs. @ 96 fpm |
Low
70% |
44,300
lbs. @ 89 fpm |
63,380
lbs. @ 62 fpm |
96,660
lbs. @ 41 fpm |
Stall |
70,400
lbs. |
100,730
lbs. |
153,630
lbs. |
|
|
|
|
|
|

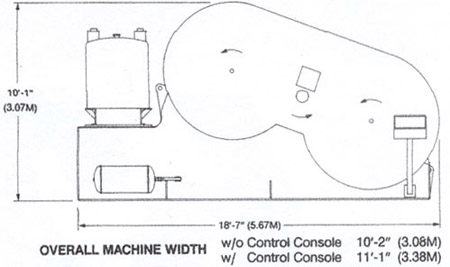

Amcon 625
 |
Drum
Dimensions |
Flange
Diameter |
67" (1702mm) |
Drum Diameter |
25.5" ( 648mm) |
Drum Length |
48" (1219mm) |
Spooling
Capacity
|
1 3/8"Wire Rope |
6578'
(2005 M) |
1 1/2"Wire Rope |
5752'
(1753 M) |
1 5/8"Wire Rope |
4363'
(1330 M) |
1 3/4"Wire Rope |
4189'
(1277 M) |
2"Wire Rope |
3129'
( 954 M) |
|
|
BRAKES
Each drum is equipped with a single
external-contracting band-type brake.
The break is air-actuated, spring released
and is complete with a spring-set override/parking
brake feature.
Static Holding Power First Layer
Service
or Parking....245,000 lbs.
(111 MT)
CLUTCH
Each drum is
equipped with a single
internal-expanding
band-type clutch.
The clutch is air-actuated.
MAXIMUM SIZE WIRE
ROPE
For Anchoring
Service...2"Wire
Rope
PAINT
Winch frame,
guards and all sheet
metal work are sandblasted
and coated with inorganic
zinc, with finish
coats of high-gloss
polyurethane marine
paint
OPTIONS
The 625 can
be ordered with a
varitey of engines,
transmissions, control
arrangements, and
electric or hydraulic
drives.
Deck guide sheaves and fairleaders can
also be furnished to fit your needs.
WINCH HEAD (optional)
An 18-inch winch
head can be mounted
on the extended drive
shaft. This extension
is on the gear guard
side of the winch.
WEIGHTS (with
standard diesel power)
Double-drum....54,900 lbs.(30.25 MT)
CONTROL CONSOLE
Side mounted stand-up type..Standard
Swing-around, seated...........Optional
Foward facing,
seated with cab....................Optional
DRUM DOG
Each drum is equipped with an air-actuated
drum dog.
MOORING PERFORMANCE
DATA
Theoretical single-drum
line pull in pounds
and line speed in
feet per minute with
a Detroit Diesel
Model 6V-71 electric-starting
diesel engine, driving
through a Twin Disc
Model TAC 33-1314
transmission with
torque converter,
using 1 3/4" wire
rope.(For hoisting
applications, please
request hoist capacity
charts.) |
|
|
|
12th
Layer (60.19"P.D.)
Line Pull @ Line
Speed |
12th
Layer (60.19"P.D.)
Line Pull @ Line
Speed |
12th
Layer (60.19"P.D.)
Line Pull @ Line
Speed |
High70% |
|
|
|
High |
8,112
@ 658 |
11,565
@ 462 |
17,919
@ 298 |
Second |
18,175
@ 294 |
25,907
@ 206 |
40,138
@ 133 |
Low |
32,450
@ 165 |
46,262
@ 115 |
71,676
@ 74 |
Max.
Eff. |
|
|
|
High |
10,675
@ 456 |
15,219
@ 320 |
23,580
@ 207 |
Second |
23,913
@ 204 |
34,090
@ 143 |
52,818
@ 133 |
Low |
42,701
@ 114 |
60,876
@ 80 |
94,318
@ 74 |
Low70% |
|
|
|
High |
15,784
@ 237 |
22,502
@ 166 |
34,863
@ 107 |
Second |
35,355
@ 106 |
50,404
@ 74 |
78,093
@ 48 |
Low |
63,135
@ 59 |
90,006
@ 42 |
139,452
@ 27 |
Stall |
|
|
|
High |
24,457 |
36,292 |
56,229 |
Second |
57,023 |
57,023 |
81,293 |
Low |
101,827 |
145,167 |
224,915 |
|
|
|
|
|
|
|

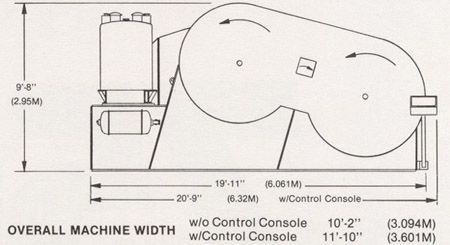

Amcon 750
 |
Drum
Dimensions |
Flange
Diameter |
72" (1829mm) |
Drum Diameter |
28" ( 648mm) |
Drum Length |
52" (1219mm |
Spooling
Capacity
|
1 3/8"Wire Rope |
7107'
(2005 M) |
1 1/2"Wire Rope |
5683'
(1732 M) |
1 5/8"Wire Rope |
4962'
(1512 M) |
1 3/4"Wire Rope |
4243'
(1293 M) |
2"Wire Rope |
4023'
(1226 M) |
|
|
BRAKES
Each drum is equipped with a single
external-contracting band-type brake.
The break is air-actuated, spring released
and is complete with a spring-set override/parking
brake feature.
Static Holding Power First Layer
Service.................300,000
lbs. (136MT)
Service+Parking....600,000
lbs. (111 MT)
CLUTCH
Each drum is
equipped with a single
internal-expanding
band-type clutch.
The clutch is air-actuated.
MAXIMUM SIZE WIRE
ROPE
For Anchoring
Service...2"Wire
Rope
PAINT
Winch
frame,
guards
and
all
sheet
metal
work
are
sandblasted
and
coated
with
inorganic
zinc,
with
finish
coats
of
high-gloss
polyurethane
marine
paint.
OPTIONS
In
addition
to
a varitey
of
engines,
transmissions,
control
arrangements,
and
electric
or
hydraulic
drives,
the
750
can
be
ordered
with
the
following
accessories:
attached
or
remote
boom
swingers,
levelwinds,
or
fleeting
sheaves.
Deck guide sheaves and fairleaders can
also be furnished to fit your needs.
WEIGHTS (with
standard
diesel
power)
Double-drum....72,000 lbs.(32.6 MT)
CONTROL
CONSOLE
Side
mounted
stand-up
type..Standard
Swing-around, seated...........Optional
Foward facing,
seated with cab....................Optional
DRUM DOG
Each drum is equipped with an air-actuated
drum dog
MAXIMUM
SIZE
WIRE
ROPE
For
Anchoring
Service...2" Wire
Rope
PERFORMANCE
DATA
Theoretical
single-drum
line
pull
in
pounds
and
line
speed
in
feet
per
minute
with
a Detroit
Diesel
Model
8V-71
electric-starting
diesel
engine,
driving
through
a Twin
Disc
Model
TAC
33-1314
transmission
with
torque
converter,
using
2" wire
rope. |
|
|
|
11th
Layer (63.89"P.D.)
Line Pull @ Line
Speed |
6th
Layer (46.94"P.D.)
Line Pull @ Line
Speed |
1st
Layer (30.0"P.D.)
Line Pull @ Line
Speed |
High70% |
|
|
|
High |
10,450
lbs @ 539 |
14,230
lbs @ 396 |
22,270
lbs @ 253 |
Second |
23,419
lbs @ 241 |
31,875
lbs @ 177 |
40,138
lbs @ 133 |
Low |
41,820
lbs @ 135 |
56,920 lbs@
99 |
89,070
lbs @ 63 |
Max.
Eff. |
|
|
|
High |
15,070
lbs @ 450 |
20,510
lbs @ 330 |
32,100 lbs@
211 |
Second |
33,727
lbs @ 201 |
45,942
lbs @ 147 |
71,893
lbs @ 95 |
Low |
60,280
lbs @ 112 |
82,050
lbs @ 82 |
128,380
lbs @ 53 |
Low70% |
|
|
|
High |
24,460
lbs @ 216 |
33,290
lbs @ 159 |
52,100
lbs @ 102 |
Second |
54,779
lbs @ 96 |
74,570
lbs @ 71 |
116,670
lbs @ 46 |
Low |
97,830
lbs @ 54 |
133,150
lbs @ 40 |
208,340
lbs @ 25 |
Stall |
|
|
|
High |
39,760
lbs |
54,120
lbs |
84,690
lbs |
Second |
89,074
lbs |
121,240
lbs |
189,694
lbs |
Low |
159,060
lbs |
216,500
lbs |
338,750
lbs |
|
|
|
|
|
|
|
Amcon 385HDS
 |
Drum
Dimensions |
Flange
Diameter |
49.50
in. |
Drum Diameter |
18.00
in |
Drum Length |
45.38
in. |
Spooling
Capacity
|
7/8
in. wire rope |
8,728
ft. |
1
in. wire rope |
6,451
ft. |
1-1/8
in. wire rope |
5,195
ft. |
1-1/4
in. wire rope |
4,072
ft. |
1-3/8
in. wire rope |
3,467
ft. |
1-1/2
in. wire rope |
2,959
ft |
|
|
Drum
Brake
The winch has parking brake and
service brake features which actuate
an external-contracting, band-type
brake on the drum. The parking
brake is spring-applied and air-released,
while the service brake is air-applied
and spring-released. Holding capacity
1st layer: 150,000 lbs
Drum Clutch
The drum is equipped
with a single air-actuated,
internal-expanding
type clutch. The
clutch is rated for
the full drum torque
and when disengaged,
will allow the drum
to free spool
Power Unit Dimensions
Length: 120.00
in.
Width: 82.38 in.
Height: 87.88 in.
Hydraulic Hose Bundle Length:
The standard length is 50 ft. Other
lengths can be supplied upon request.
.
Drum Dog
The drum is equipped
with an air-actuated
ratcheting drum dog. The
dog's holding capacity
is in excess of the
breaking strength
of 1-1/2 in. wire
rope.
Weights
Winch (without
rope): 15,000 lbs.
Power Unit: 7,500 lbs.
Control Console
The winch is equipped with a stand-up
type control console mounted to the
front of the winch. Optionally,
the console can be remotely mounted. |
|
|
1ST
Layer
Line Pull @ Line
Speed |
5th
Layer
Line Pull @ Line
Speed |
10th
Layer
Line Pull @ Line
Speed |
120,073
lbs. @ 40 ft/min |
78,729
lbs. @ 61 ft/min |
55,027
lbs. @ 87 ft/min |
29,023
lbs. @ 166 ft/min |
19,030
lbs. @ 253 ft/min |
13,301
lbs. @ 361 ft/min |
|
|
|
|
|
|
|
|
