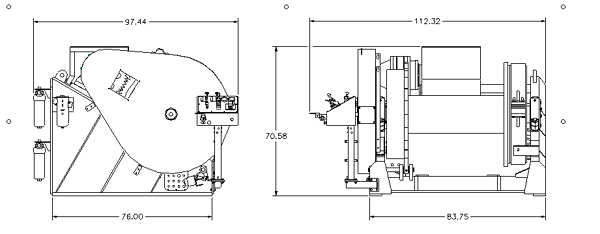

DRUM DIMENSIONS |
Flange Diameter |
49.50 in. |
Drum Diameter |
18.00 in |
Drum Length |
45.38 in. |
|
SPOOLING CAPACITY |
7/8 in. |
8,728 ft. |
1 in. wire rope |
6,451 ft. |
1-1/8 in. wire rope |
5,195 ft. |
1-1/4 in. wire rope |
4,072 ft. |
1-3/8 in. wire rope |
3,467 ft. |
1-1/2 in. wire rope |
2,959 ft. |
|
 |
|
|
Weights
Winch (without rope): 15,000 lbs.
Power Unit: 7,500 lbs. |
|
|
Control Console
The winch is equipped with a stand-up type control console mounted to the front of the winch. Optionally, the console can be remotely mounted. |
|
|
|
|
|
|
|
Drum Brake
The winch has parking brake and service brake features which actuate an external-contracting, band-type brake on the drum. The parking brake is spring-applied
and air-released, while the service brake is air-applied and spring-released. Holding capacity 1st layer: 150,000 lbs. |
|
|
|
|
Drum Clutch
The drum is equipped with a single air-actuated, internal-expanding type clutch. The clutch is rated for the full drum torque and when disengaged, will allow
the drum to free spool. |
|
|
|
Power Unit Dimensions
Length: 120.00 in.
Width: 82.38 in.
Height: 87.88 in. |
|
|
Hydraulic Hose Bundle Length:
The standard length is 50 ft. Other lengths can be supplied upon request.
. |
|
|
Drum Dog
The drum is equipped with an air-actuated ratcheting drum dog. The dog's holding capacity is in excess of the breaking strength of 1-1/2 in. wire rope. |
|
