| 5TUT-16 | |
|---|---|
| PUMP | |
| Type | 3-stage, centrifugal opposed impeller, split case |
| Max. Pressure | 400 psi (27.21 Bars) |
| Suction Port x Flange Size | 6″ (15.24 cm) x 125 lb. ANSI |
| Discharge Port x Flange Size | 5″ (12.7 cm) x 250 lb. ANSI |
| Priming | Protek/Hand |
| Parallel Operation | Yes (with approval) |
| Engine | Choice of engine models with electric, hydraulic or air starting |
| FUEL TANK | |
| Capacity | 50 gallon (189.25 liter) |
| Removable | Yes |
| DIMENSIONS | |
| Length | 15’3″ (4.65m) |
| Width | 4’4″ (1.3m) |
| Height | 6’10” (2.08m) |
| Weight | 10,000 lbs. (4,536 kg) |
| Paint | Marine painted with inorganic zinc primer. |
| Options | The 5TUT-16 can also be equipped with either gasoline engine-powered primer or air pump priming equipment, suction and discharge hose, 6 x 5″ or 5 x 4″ swaged nipple for discharge, 6″ foot valve and strainer or a 5″ silent valve. |

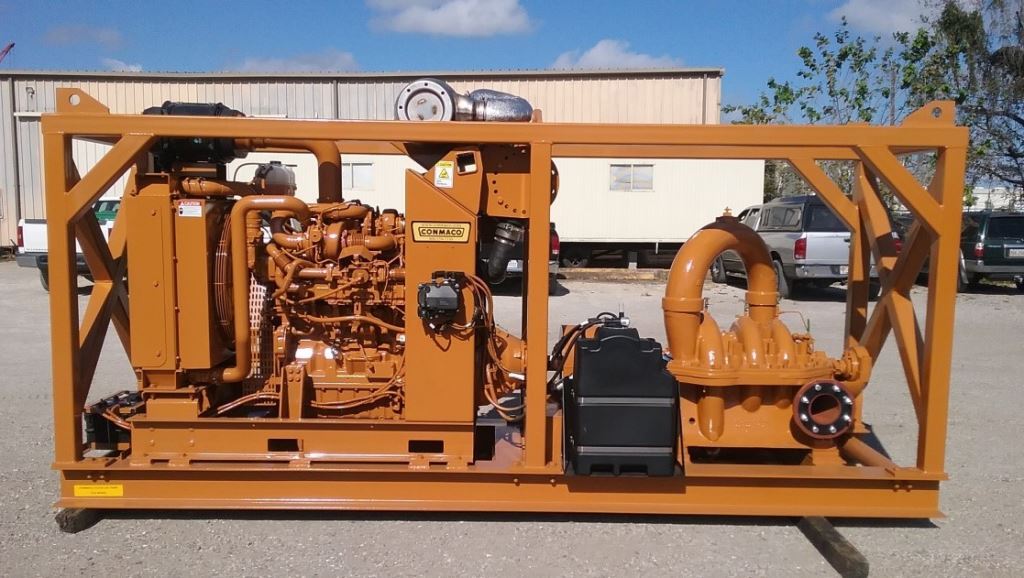

Conmaco Jet Pumps are dependable diesel powered jet and water supply pumps. The pump is a Peerless three stage centrifugal split case pump connected with a PTO. The entire unit is mounted on a sturdy steel skid with lifting rack for simple transportation.
NOTE: Performance ratings are composite performance curves taken from the manufacturers published data and can vary with options and usage conditions. Do not use for purposes of design.
