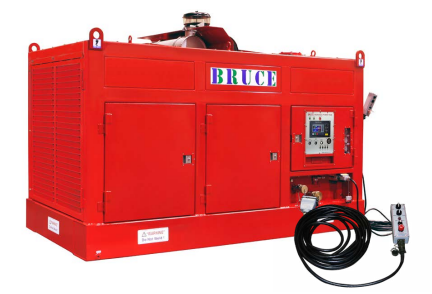

SPECIFICATIONS OF HYDRAULIC POWER PACKS

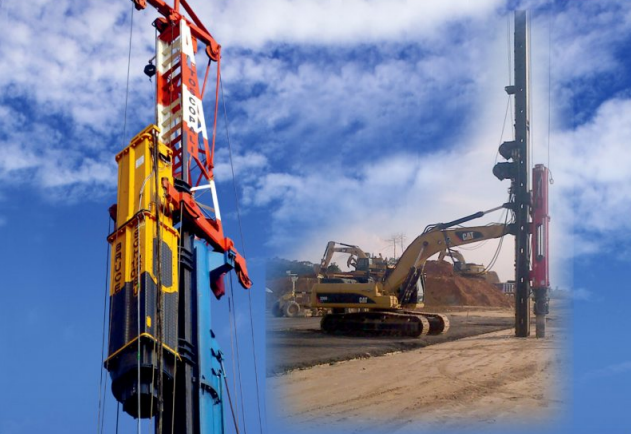

Pile driving equipment is used to install piles into the ground to provide strong foundations for buildings, bridges, and other structures. It includes machines like pile drivers, hammers, and rigs designed to drive steel, concrete, or timber piles efficiently and accurately into various soil types.
| MODEL | P140-60, s/n P-24 | 30/50, s/n 25172 | 50/30, s/n 0810091 | 50/30S, s/n 0807065 |
|---|---|---|---|---|
| Horse Power | 150 HP | 150 HP | 300 HP | 300 HP |
| Used with | 16, 24 Cutters | 16, 24, 30 Cutters | All Cutters | All Cutters |
| Weight | 4150 lbs. | 4000 lbs. | 10,700 lbs. | 16,000 lbs. |
| Length | 89 inches | 135 inches | 127 inches | 180 inches |
| Width | 41 inches | 58 inches | 96 inches | 96 inches |
| Height | 72 inches | 80 inches | 100 inches | 100 inches |
| Pressure | 3000 psi | 3000–5000 psi | 3000 to 5000 psi | 3000 to 5000 psi |
| Flow | 55 gpm | 55 gpm | 55 gpm | 55 gpm |
